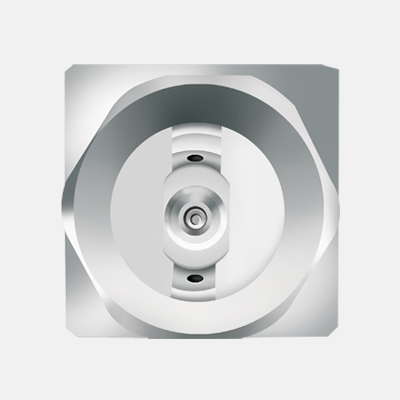

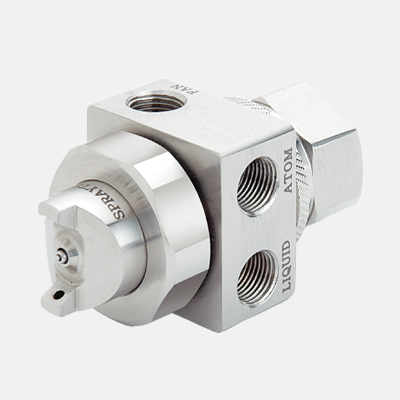

RAS Flat External Mix Coating Spray Nozzles

liquid Orifice Range :0.5 to 1.2 mm

RAS type tablet coating spray nozzle is very compact and light weight design and it comes with 4 ports of controls.

Externally mixed atomized spray properties could be changed as per need with fine tuning of individual pressures of Atomizing air, Fan Air & liquid pressure.

Integrated needle assembly provide the Auto-shut off and Auto Cleaning of liquid orifice.

RAS type spray nozzle is suitable for Lab-coater, Auto Coater and Conventional coater.

Spray setup available with Flat Fan, and Round Pattern.

All Sealing materials are FDA Approved.
